Sunday 22 August 2010

4th Living VCO



The fourth (and last) of my JH Living VCO's mid-construction. You can see how the board is mounted before I add the other board with waveshapers etc... Fascinating stuff!

CGS Digital Noise

Not quite finished yet (need a 4006). I'm hoping to buffer the internal VCO and bring it out, I also added a few mods suggested from on e-m (I think Luka and Dave Kendall)

SN Voice


Whilst I was at it, I thought I'd start repanelling my 6 SN Voice modules to 'fit in'. Slightly smaller, and now Euro format (15V though)... 5 more to go!

CGS Quad XOR


Made the CGS 39 Quad Logic Gate as a quad XOR. Mainly to use with the Doepfer 149/2 and Slope Detectors...

More acid on a modular

Zombienator by thebadproducer

More acid...

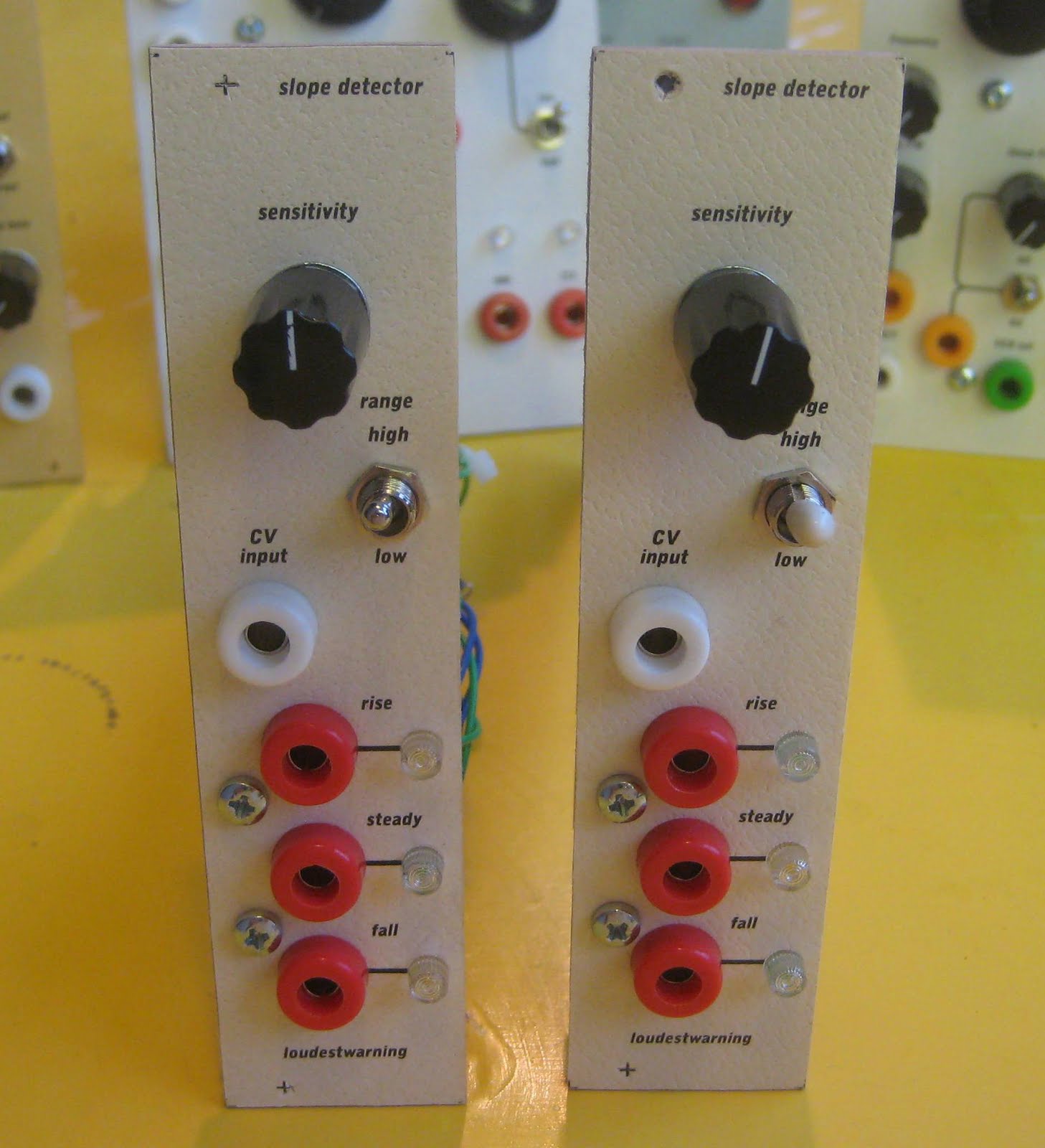

CGS Slope Detector


Finished these too. I used a 220N cap for the range switch, haven't really explored what that does yet as I've only just put them in the box...

Thomas Henry / Fonitronik Super Controller


Put one of my Super Controllers behind a new panel (one more to do) slightly better ergonomics to my mind... Great, fun module...

Krautrock Phasers




Finally finished all three JH Krautrock Phasers to my satisfaction... In the end I just added external CV control for amount, with switch to select internal/external control and a pot to adjust CV input...

Another Sequencer





Another CGS gate sequencer, this time with an 8 throw switch on each step, so pulse output can be patched back in and sent to a choice of destinations, I use it for controlling my CTM module/sampler. I added pulse out/in so pulse can be sent out for delay or width modification before going back into the switch...

Quite a bit of wiring...

EH Memory Man mods


Here is a picture of an Electro Harmonix Memory Man that I modified recently for Alex from The Cyclones -great band, check them out here: http://www.myspace.com/ourcyclones and here: http://cyclonesband.blogspot.com/

I added a foot pedal to control delay time and I added a switch to select use with or without the pedal. Great fun, and easier than I thought...

Thursday 19 August 2010

bench


this is the bench, picture taken by http://www.letthemeatcoal.com/ check it out, great photography...

Monday 2 August 2010

errrr


Been a bit slack recently, but here is a nice picture of the Glastonbury dawn...

...well it might be sunset, anyway... I should be a bit more active soon...
